BMW 3 Way Hirschmann Automotive Breakout Lead - Camshaft & Crankshaft Connector
Connector Part Number: 805-121-521 - SealStar 1.2
- BMW Camshaft Sensor Connector
- BMW Crankshaft Sensor
- BMW Exhaust Gas Pressure Sensor Before Diesel Particulate Filter
- Compatible with; 1 Series (F20), 3 Series (F30), 5 Series (G30), X3 (G01, F25), X5 (G05)

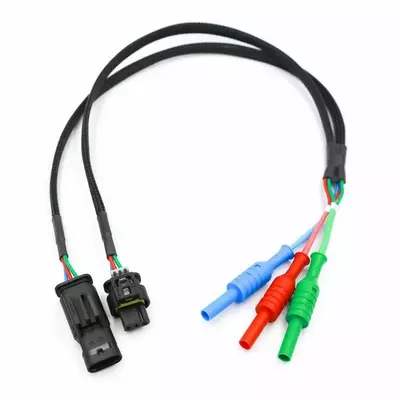

The Hirschmann 3 way breakout lead is part of our BMW lead range. The Hirschmann 3 way connector is found on various BMW Camshaft, Crankshaft and Exhaust Gas Pressure Sensor connectors. The 3 way Hirschmann breakout lead provides a fast and effective system to connect and run diagnostic tests. Prevent connector pin damage often caused by back pin probing and perform diagnostics with connection security.
The output signals from the breakout lead banana plugs can be connected via a BNC to 4mm Banana Plugs Patch Lead to handheld or PC based automotive oscilloscopes from; PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke.
The individual wire connections are colour coded for identification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.
All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:
- Pin 1 - GREEN wire and female banana plug
- Pin 2 - RED wire and female banana plug
- Pin 3 - BLUE wire and female banana plug
Connectors vary across models and generations. Connector comparison is recommended to ensure the connector breakout is compatible for the intended test application.
