BMW 5 Way Kostal Automotive Breakout Lead - EGR Valve Connector Breakout
Connector Part Number: 9408621

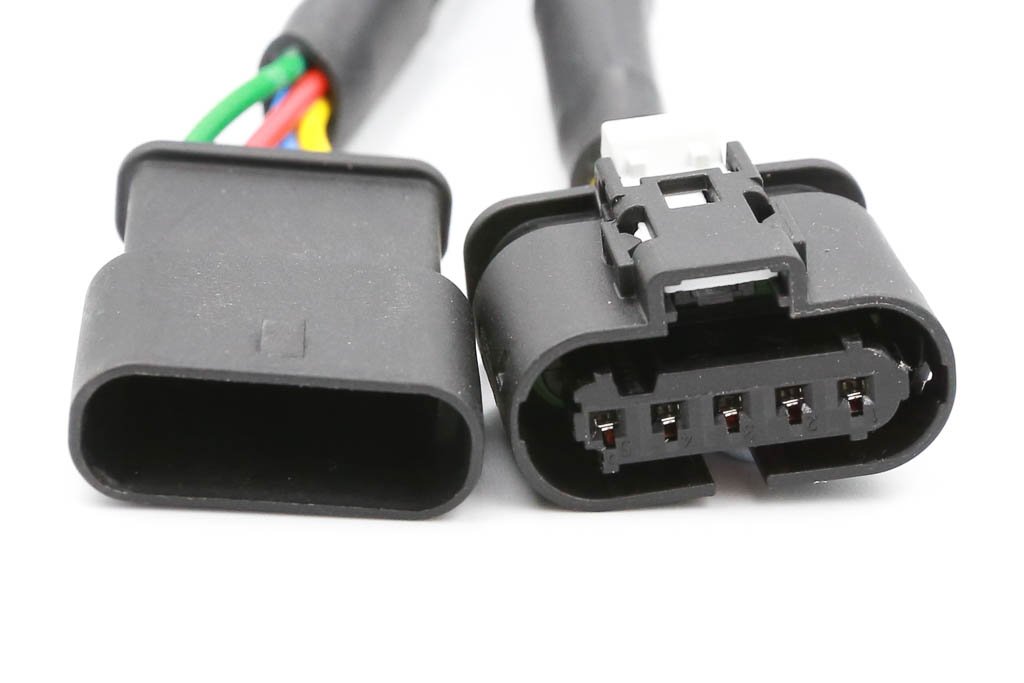

- BMW Exhaust Gas Re-circulation (EGR) Valve Connector
- Compatible with; 1 Series (F20), 3 Series (F30), 5 Series (G30), X3 (G01, F25), X5 (G05)

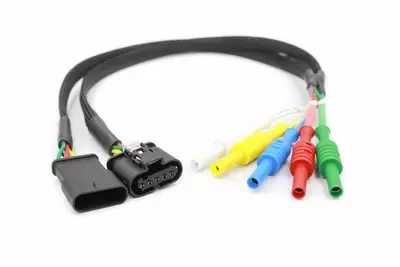

The Kostal 5 way breakout lead is part of our BMW lead range. A wide range of BMW models utilise the Kostal 5 way connector as the EGR valve connector. The BMW 5 way Kostal breakout lead provides a fast and effective system to connect and run diagnostic tests. Prevent connector pin damage often caused by back pin probing and perform diagnostics with connection security.
The output signals from the breakout lead banana plugs can be connected via a BNC to 4mm Banana Plugs Patch Lead to handheld or PC based automotive oscilloscopes from; PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke.
The individual wire connections are colour coded for identification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.
All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:
- Pin 1 - GREEN wire and female banana plug
- Pin 2 - RED wire and female banana plug
- Pin 3 - BLUE wire and female banana plug
- Pin 4 - YELLOW wire and female banana plug
- Pin 5 - WHITE wire and female banana plug
Connectors vary across models and generations. Connector comparison is recommended to ensure the connector breakout is compatible for the intended test application.
