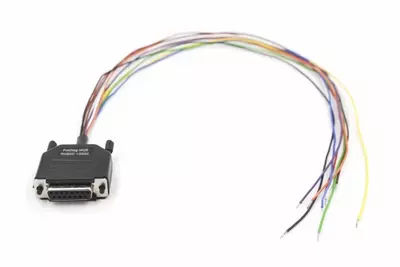

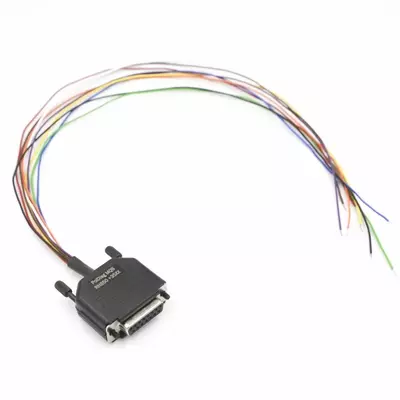

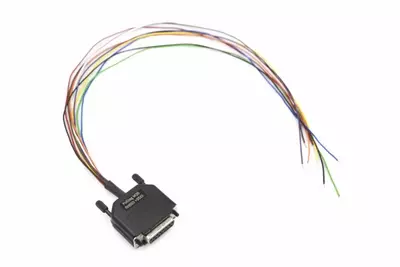

W-AKL-850-35 MQB RH850 +35XX Adapter Cable
A Custom cable designed for use with the PolDiag RH850 and MQB35XX solutions.
Consisting of a 15way D-Sub connector wired with 9x multi coloured wires for soldering onto PCB and IC legs.
This cable will replace a damaged MQB 35XX adapter cable.
Wire length (D-Sub face to end) = 36cm.
Pin Connections:
1: Red 9: N/C
2:N/C 10: Orange
3:Brown 11: N/C
4:Yellow 12: Purple
5: Green 13: White
6: N/C 14: Blue
7: Black 15: N/C
8:N/C
