2 way Fiat Injector MTA C280 Automotive Connector Breakout Lead- Vehicle Diagnostics

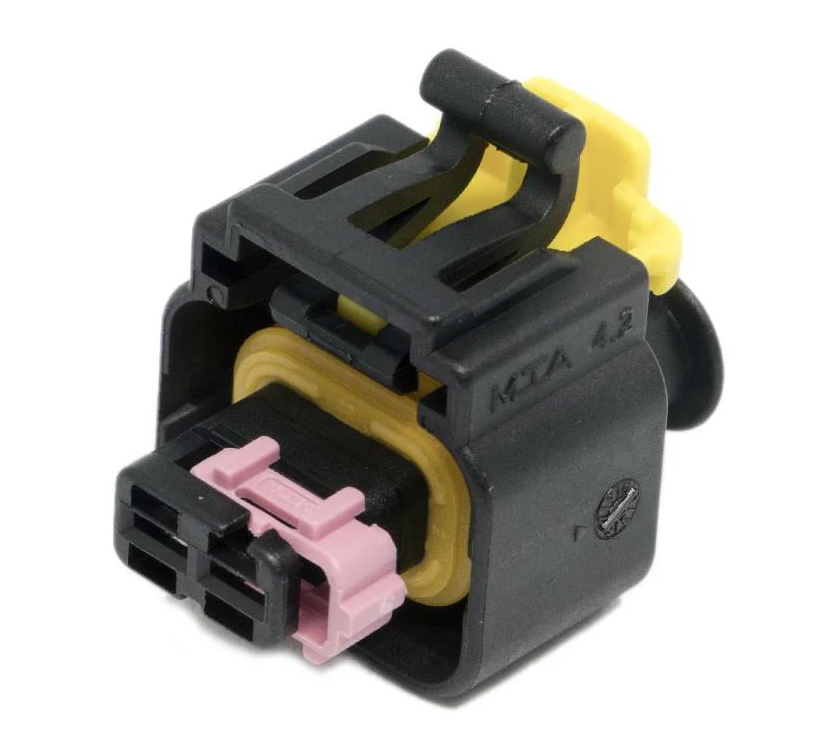

Connector Part Number: MTA C280 Series 4510801

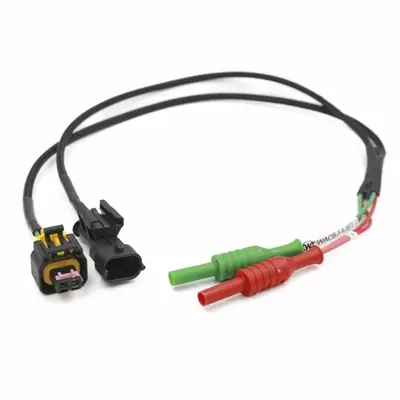

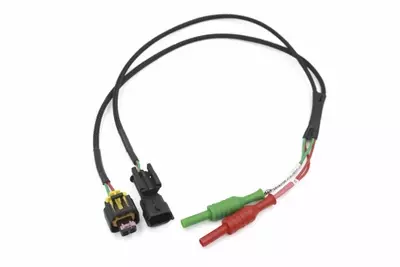

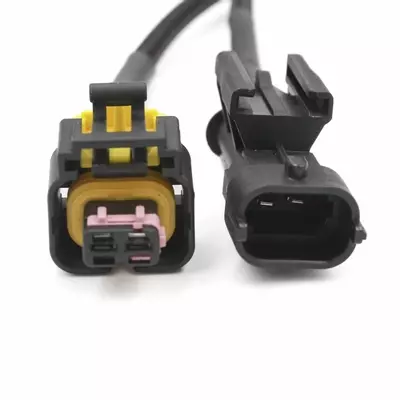

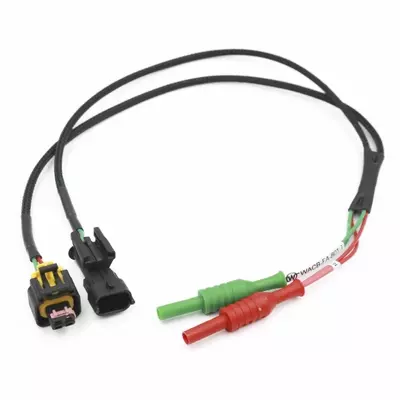

This MTA Connector 2 Way breakout lead is part of our range of automotive connector breakout leads designed to connect to 2 pin MTA and Bosch Kompact 3 connectors found on Fiat injectors. They are also found in numerous other vehicles such as:
- Vauxhall Vivaro 1.9 and 2.0 CDTi
- Vauxhall Vectra 2.0 CDTi
- Vauxhall Corsa 1.3 CDTi
- Vauxhall Combi 1.3 CDTi
- Vauxhall Astra 1.3 CDTi
- Renault Traffic 1.9 and 2.0 CDTi
- Nissan Primaster 1.9 and 2.0 CDTi
- Citroen Berlingo 1.6HDi & various other models
- Peugeots and Citroens with 2.0 HDi engines
- Alfa Romeo - Various diesel models
- Saab - various diesel models
- BMW - 12512247471
- DAF - 1391484
- Ford - 1L2T14A464TA
- Cummins - 3164098
- Iveco 41118038
- Renault - 7703597062
- MAN - 81.25475-0152
- Volvo - 874368
- Peugeot - 96381671
The lead enables automotive technicians to connect to a connector within a vehicle loom and conduct diagnostic voltage and current measurements of various sensors, actuators and components. The output signals from the breakout lead banana plugs can be connected via a BNC to 4mm Banana Plugs Patch Lead to handheld or PC based automotive oscilloscopes from; PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke.
The individual wire connections are colour coded for easy identification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.
All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Warwick Test Supplies WACB automotive breakout leads use the following colour code convention:
- Pin 1 - GREEN wire and female banana plug
- Pin 2 - RED wire and female banana plug
- Pin 3 - BLUE wire and female banana plug
- Pin 4 - YELLOW wire and female banana plug
- Pin 5 - WHITE wire and female banana plug
- Pin 6 - BLACK wire and female banana plug
MTA 2 Way Compatibility
The MTA Connector C280 Series are suitable for Bosch diesel fuel systems and are fitted to a wide variety of vehicles with diesel injectors and control valves. Compatible vehicles; VW, Audi, Citroen, BWW, Peugeot, Renault, Vauxhall and Ford.
