PJP 1066 Stacking 4mm Shrouded Banana Plug
1066
- Description
Electro-PJP 4mm DIY Stacking Shrouded Banana Plug
Discontinued - Last stock.
Replaced by 1076 Stacking Shrouded Banana Plug

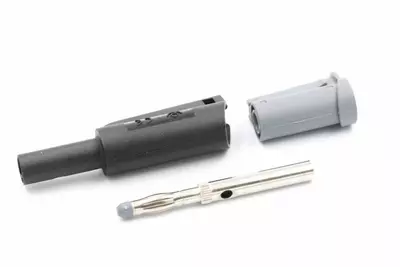

Do-it-Yourself (DIY) Stacking 4 mm Banana (male) Plug with solderless screw wire attachment. Commonly featured on Multimeter Leads and offer easy connection and option of stacking.
1000 V CAT II / 600 V CAT III / 300 V CAT IV, reinforced insulation, pollution degree 2,
Current Rating 36 A
An Authentic & Original Electro-PJP part

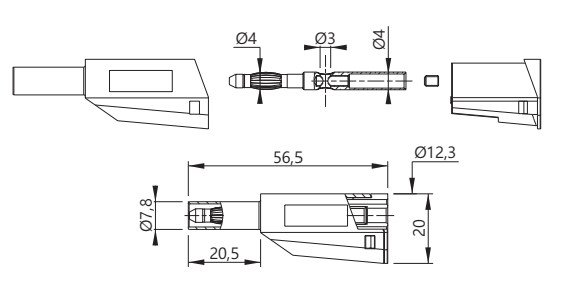

View the Datasheet for more information.
Assembly procedure
- Strip 6mm of the wire.
- Slip the wire through the grey plastic cover.
- Put the wire strands into the transversal hole in the metal plug and tighten the grub screw down on the wire with a 1.5mm Allen hex key.
- Place the metal plug into the grey plastic cover.
- Push the metal plug and grey plastic cover into the coloured external cover until they lock.
- The pug is now ready to use.
