WUCB-S Universal Automotive Connector Breakout Kit
Eliminate the need to own specific breakout leads to perform engine diagnostics on different vehicles with our WUCB Universal Breakout Lead Set. The breakout leads are available with four different size (0.6mm 1.5mm, 2.3mm and 2.8mm) connectors, allowing you to connect to virtually any sensor in the engine compartment of many vehicles.
The 6-way universal connector breakout leads offer versatility, reliability and performance. The breakout lead is simply connected into the vehicle cable loom, enabling voltage and current readings to be taken from the numerous sensors in the engine compartment.
The breakout leads will connect to various vehicle components regardless of connector arrangement. Misleading measurements and diagnoses can often be the result of poor connections. The durable PJP banana sockets provide a good connection, ensuring accurate and dependable test results. The standard 4mm banana sockets offer a reliable measurement point for your test lead, whilst a current clamp can be applied to any breakout lead to monitor current.
This lead kit features;

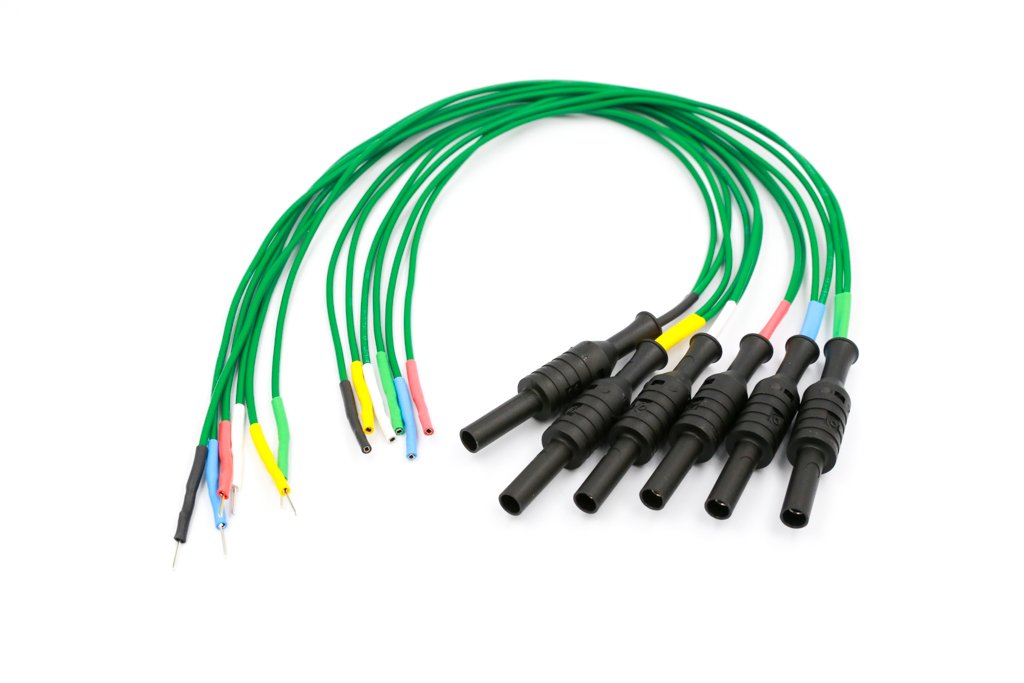

- WUCB-06 - Universal Connector Breakout - Micro (0.6mm)

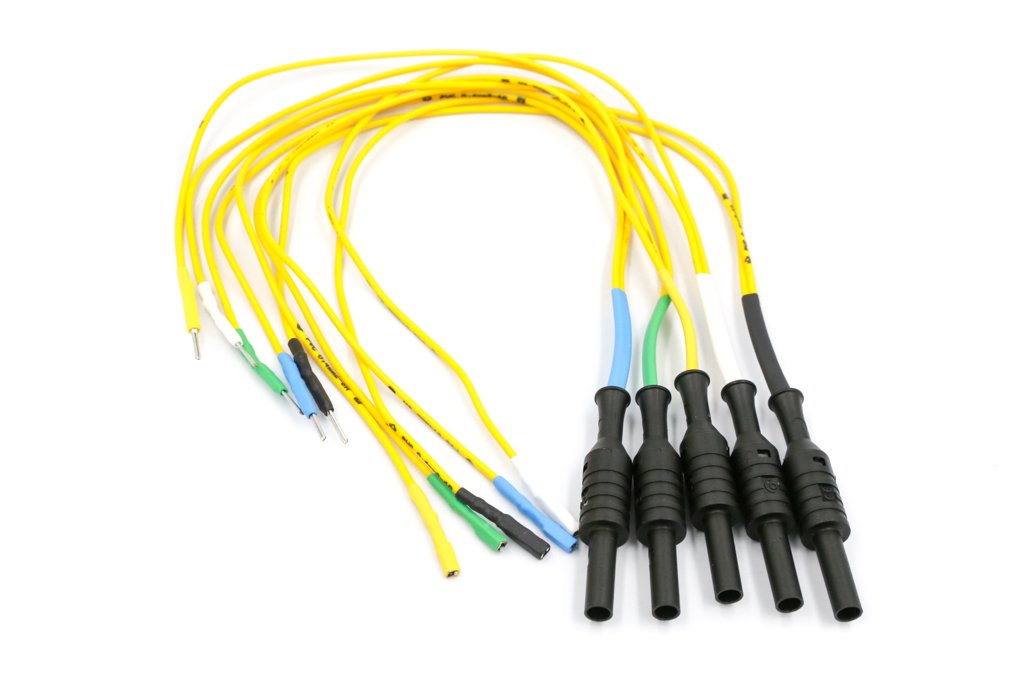

- WUCB-15 - Universal Connector Breakout - Small (1.5mm)

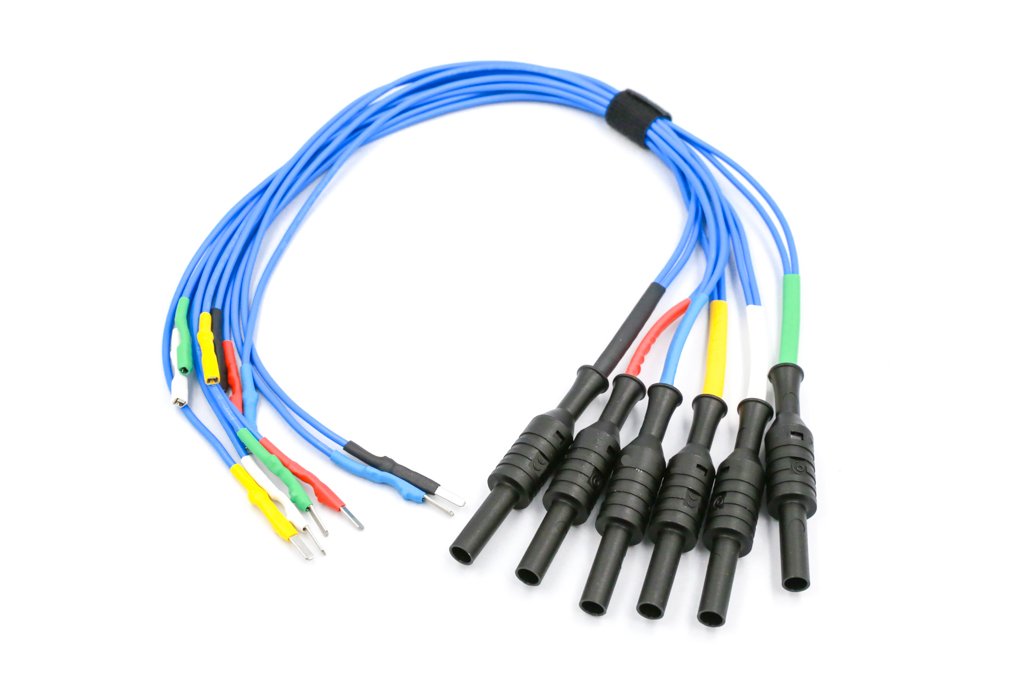

- WUCB-23 - Universal Connector Breakout - Medium (2.3mm)
- WUCB-28 - Universal COnnector Breakout - Large (2.8mm)
Examples of where these leads can be used;
- Inspection of terminal pin contact for any matching connector
- "Open" and "Short" tests of circuits
- Actuator measurements for voltage and current
- O2 sensor measurements for voltage and current (including broadband)
- Sensor measurements for voltage and feedback
Eliminate the need to own specific breakout leads to perform engine diagnostics on different vehicles with our WUCB Universal Breakout Lead Set. The breakout leads are available with four different sizes (0.6mm 1.5mm, 2.3mm and 2.8mm) connectors, allowing you to connect to virtually any sensor in the engine compartment of many vehicles.
