Winslow Adaptics W9306 Through-Board PLCC Plug - 84 Pin
(Image representative of range) - MoQ 10pcs
The W9306 is a Through-Board PLCC Plug that features 84 pins. These connectors are typically mounted by hand and wave soldering processes. However these connectors can also be mounted by reflow.
Pin Length Variations
W9306 - 11.7mm
W9306-ZC168 - 6.8mm
W9306-ZC185 - 8.3mm (request quote)
W9306-ZC187 - 9.6mm (request quote)

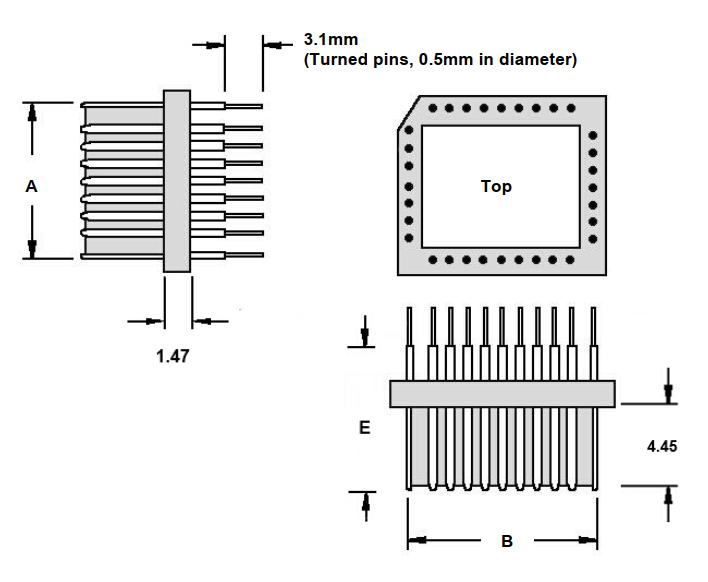

Specification
Gender: Male
Number of contacts: 84
Body Orientation: Straight
Pitch: 1.27
'A' Length: 29.5mm
'B' Length: 29.5mm
