Vehicle Diagnostics Breakout Lead Set - 1.5mm Contacts - For VAG Vehicles
2 Pin - 3 Pin - 4 Pin - 6 Pin Breakout Leads For VAG Vehicles

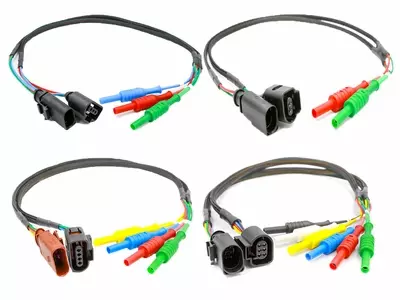

The WACB-V152060SET consists of a set of 4 breakout leads utilising 1.5mm VAG connectors. The breakout leads within this set have been designed to enable a technician to connect quickly and reliably to 2, 3 4 and 6 pin VAG automotive connectors to conduct diagnostics of injectors and various sensors commonly found on VW, Audi and Skoda vehicles.
Prevent damage to the vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.
Each breakout lead features 4mm banana plug sockets that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.
Reliable readings start with the point of connection. Ensure your findings are accurate and prevent misdiagnosis with reliable breakouts that are purpose built for the workshop.
All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:
- Pin 1 - GREEN wire and banana plug
- Pin 2 - RED wire and banana plug
- Pin 3 - BLUE wire and banana plug
- Pin 4 - YELLOW wire and banana plug
- Pin 5 - WHITE wire and banana plug
- Pin 6 - BLACK wire and banana plug
Set consists of the following breakout leads:
