Deutsch 4way DTMH Key 'A' Automotive Connector Breakout
WACB-602
- Description
WACB-602 Deutsch DTMH 4way Industrial & Commercial Auto Diagnostic Breakout Lead
Connector Part Number: DTMH04-4PA/DTMH06-4SA

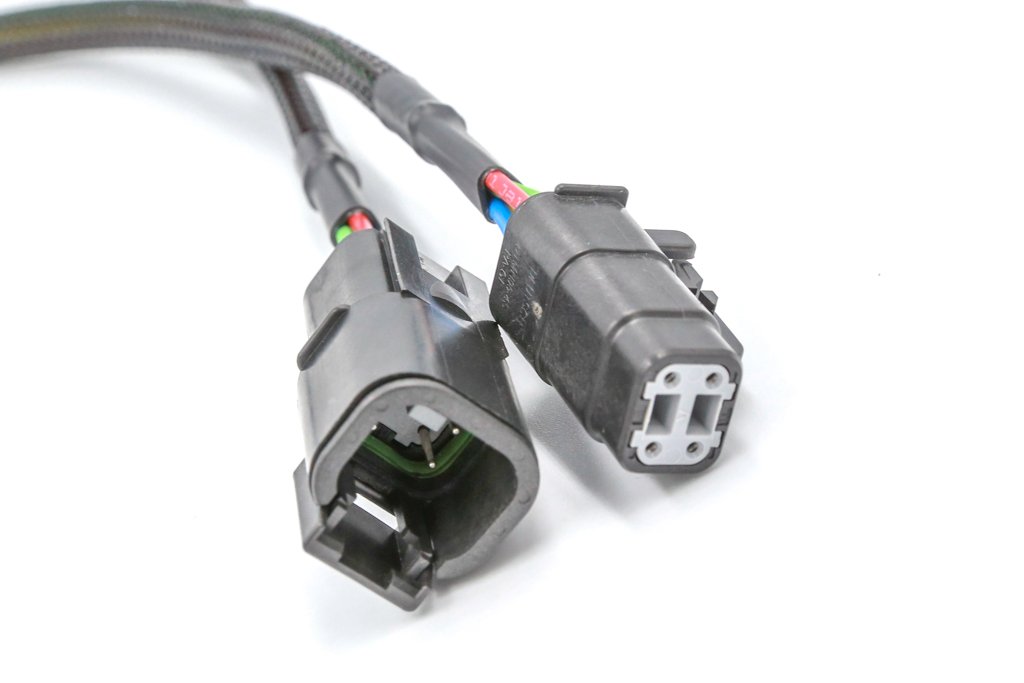

The 4 Way Deutsch DTM breakout lead has been designed to connect quickly and reliably to 4 pin Deutsch automotive connectors commonly found on industrial and commercial vehicles such as plant, tractors and trucks. The breakout lead features both male, DTMH06-4SA, and female, DTMH04-4PA connectors with the 'A' Type Keyway.
Prevent damage to the vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.
The WACB-602 breakout lead features 4mm banana plug sockets that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.
Reliable readings start with the point of connection. Ensure your findings are accurate and prevent mis-diagnosis with reliable breakouts that are purpose built for the workshop.
All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:
- Pin 1 - GREEN wire and female banana plug
- Pin 2 - RED wire and female banana plug
- Pin 3 - BLUE wire and female banana plug
- Pin 4 - YELLOW wire and female banana plug
