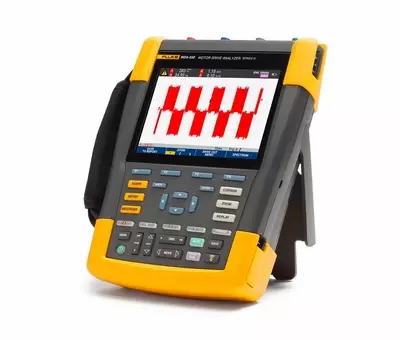

Fluke MDA-550-III Series III Motor Driver Analyzer

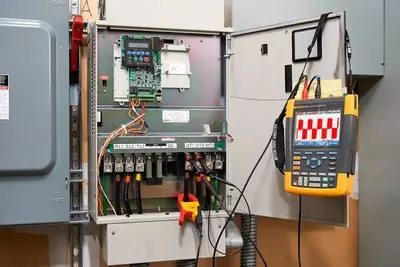

The Fluke MDA-550-III combines rugged portability with the high performance of bench scopes to help you take on the challenges of installing, commissioning, and maintaining industrial machinery, automation and process controls, and power conversion electronics with ease.
Fluke MDA-550 Series III are engineered to go where you go, and tackle just about any troubleshooting job along the way. These CAT III 1000 V/CAT IV 600V rated test tools combine rugged portability with the high performance of bench oscilloscopes to help you take on the challenges of installing, commissioning and maintaining industrial machinery, automation and process controls, and power conversion electronics with ease—from DC to 500 MHz.
Features
- Up to four independent floating isolated inputs, up to 1000 V
- Up to 5 GS/s real time sampling (depending on model and channels used)
- Deep memory: 10,000 points per trace waveform capture (scope mode)
- CAT III 1000 V/CAT IV 600 V safety rated instrument for industrial environments
- Up to seven hours of battery operation using BP291
- Large, bright color display is easy to view in nearly any environment
- Easy to store and view historical data and transfer to a PC via USB or Wifi
- Convenient battery access door for quick battery swaps in the field
- IP51 rating, dust and drip-proof
- Connect-and-View triggering for intelligent, automatic triggering on fast, slow and even complex signals
- Frequency spectrum using FFT-analysis
- Automatic capture and REPLAY of 100 screens
- ScopeRecord mode gives 30,000 points per input channel for low frequency signal analysis
- TrendPlot Paperless Recorder mode with deep memory for long- term automatic measurements
- 5,000 count DMM included in the 2-channel models
Specification
- Safety: 1000V CAT III / 600V CAT IV to keep users safe
- Large, bright color display to view and analyze data on screen in nearly any environment
- Fully isolated inputs for extra safety and reliability of measurement
- ScopeRecord™ stores up to 48 hours data and captures intermittent and fast
glitches
- TrendPlot™ plots key values so you can quickly identify intermittent faults
- Connect & View™ automatically triggers and captures data to expedite
troubleshooting
- USB and Wi-Fi allow you to quickly download data for analysis via optional
FlukeView-2 Software
