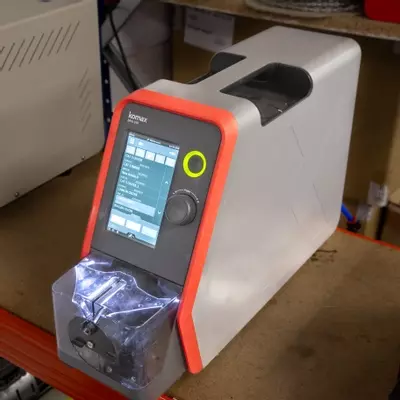

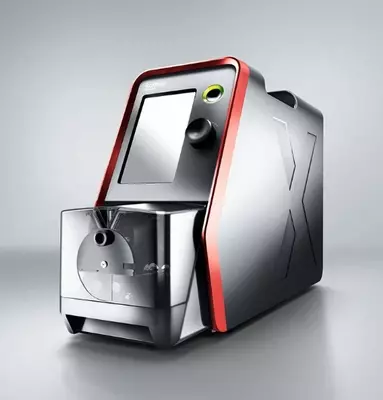

Mira 340

Wire Stripper

The programmable Mira 340 stripping machine enables automated processing of wires with an outer diameter of up to 8 mm and a strip length of 72 mm.

The Mira 340 and 340 Q work precisely and with high stripping quality thanks to the rotating cutting unit with 4X blades. The patented ACD incision monitoring system ensures quality assurance during cutting and/or pulling by detecting the slightest contact between the blade and conductor. In addition, multi-core wires and multi-layer insulation can also be efficiently stripped with sequence processing in the Mira 340

Technical Data

  • Wire outer diameter max: 8mm
  • Strip lengths, full stripping max: 72mm
  • Increment of strip length: 0.01mm
  • Insertion depth with standard grippers min: 12mm
  • Electrical connection: 100-240 V AC, 120 VA
