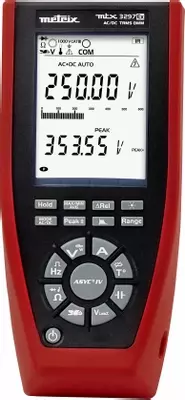

Chauvin Arnoux MTX 3297EX ATEX Intrinsically Safe TRMS Digital Multimeter
The Chauvin Arnoux MTX 3297EX Intrinsically Safe TRMS Digital Multimeter is designed for use within explosive atmospheres (EX) and is certified for IIC (gas) zones 0, 1 and 2, IIIC (dust)
zones 20, 21 and 22 and Mines (firedamp), allowing permanent use in the oil, chemicals, pharmaceutical and mining industries.
IP67 liquid and dust proof with 2x 60,000 ct backlit 5.7in mono screen. 100 kHz bandwidth and 1µV resolution for voltage and 0.01 µA resolution for current offers outstanding and lead beating accuracy for a professional working in extreme environments.
Rating: 1000V CAT III/ 600V CAT IV.
Measurements
- Voltage
- Current
- Resistance (continuity, semiconductor junction)
- Capacitance
- Frequency (duty cycle/pulse width)
- Temperature
- AC/DC current measurement with selection of the I/O ratio
Functions
- VLowZ low-impedance voltage measurement in the presence of "stray" disturbance voltages.
- Low-pass filter for measuring the PWM signal
- Min, MAX, Peak+ and Peak- functions
- ∆X differential and ∆X/X relative functions
- Duty cycle and pulse width
Specifications
- AC & AC+DC Voltage - 1000 V AC, resolution 0.001mV, accuracy 0.5% + 0.3pts
- DC Voltage - 1000 V DC, resolution 0.001mV, acciracy 0.5% + 25cts
- AC AC+DC Current - 10A (20A), resolution 0.01uA, accuracy 1% +25cts
- DC Current - 10A (20A), resolution 0.01uA, accuracy 0.8% + 20cts
- Resistance - 60MΩ, resolution 0.01Ω, accuracy 0.2% + 20cts
- Diode test - 3V
- Capacitance - 0.100nF - 60.00mF, accuracy 3% + 5pts
- Frequency - 10.00 Hz - 2.00 KHz, resolution 0.1% + 1pt
- Temperature - -200°C - +800°C, resolution 1% + 1.5°C
- Batteries - 4 x 1.5V AAA 350h
- Warenty - 3 yrs
