MS77L Insulated Sockets
MS77L
- Description

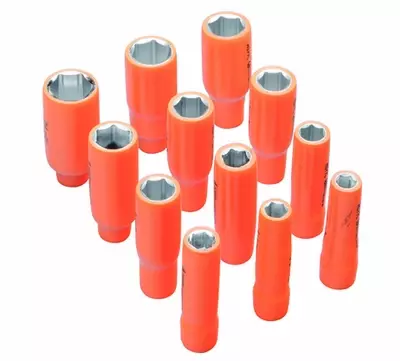

MS77L Insulated 6 Point Female Hex Sockets 3/8" Square Drive
1000V Insulated Long sockets suitable for difficult access (long shafts and threads). Made from chrome vanadium steel. Sockets are suitable for use with standard or mechanically locking ratchets.
The socket has 4 ogive-type recesses inside the female square to accommodate the crimped ball of the ratchet and thus ensure a safe and effective holding of the assembly (up to 500 Newtons to the pull-out).
A flange is also included for optimum electrical protection when used with a ratchet spanner or an extension.Advantages : Outer diameter reduced to a minimum for optimum accessibility on installations.
Standards:
EN 60900 / IEC 60900 / ISO 691 / ISO 1174-1 / ISO 1711-1 / ISO 2725-1
Sizes:
- MS77L 08 = Diameter (mm): 8 , Weight (g): 40
- MS77L 09 = Diameter (mm): 9 , Weight (g): 40
- MS77L 10 = Diameter (mm): 10 , Weight (g): 60
- MS77L 11 = Diameter (mm): 11 , Weight (g): 80
- MS77L 12 = Diameter (mm): 12 , Weight (g): 80
- MS77L 13 = Diameter (mm): 13 , Weight (g): 105
- MS77L 14 = Diameter (mm): 14 , Weight (g): 120
- MS77L 16 = Diameter (mm): 16 , Weight (g): 130
- MS77L 17 = Diameter (mm): 17 , Weight (g): 150
- MS77L 18 = Diameter (mm): 18 , Weight (g): 150
- MS77L 19 = Diameter (mm): 19 , Weight (g): 150
- MS77L 21 = Diameter (mm): 21 , Weight (g): 160
- MS77L 22 = Diameter (mm): 22 , Weight (g): 170
- MS77L 24 = Diameter (mm): 24 , Weight (g): 170
