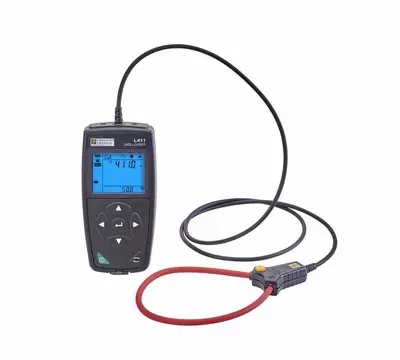

L411 Current Logger with Integral MiniFlex, 1 Channel 0.5-3000A AC

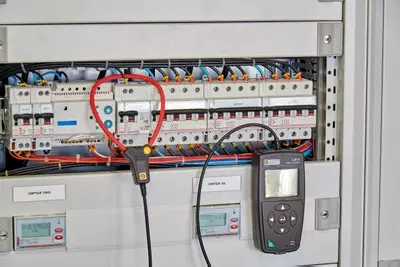

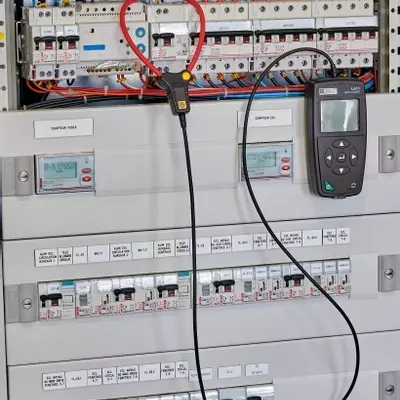

The L411 Current Logger can be used to monitor and analyse energy consumption in buildings or on an industrial load to enable energy efficiency. They also aid in the identification of potential problems before they become critical, such as overloading, over heating etc. Logging current can also provide evidence of an outage or power variation that has caused a malfunction.
These current loggers can operate over a very long period of time if required. They are simple to set up and can communicate via a USB port or via WiFi mode.
Data logger transfer software is used to configue the device and process all measurements.
Features:
- 1 measurement channel
- Measurements from 0.5A to 3000A AC
- Backlit display
- 8GB Memory
- 1 measurement per second
- Aggregation form 1 to 60 mins
- Powered by USB or 3x AA batteries
- Battery life of 3 days without WiFi
- Dimensions: 147mm x 34mm x 72mm
- Weight: 300g
- Current sensor: 100mm dia, 350mm long, lead 1.2m
- Operating Temp: -20°C to 50°C
- Protection: IP54
- Electrical Safety: IEC 61010 600V CAT IV/ 1000V CAT III
In the box:
- L411 Current Logger with integral MiniFlex
- USB micro USB cable
- USB Mains Adapter
- Data transfer and management software
- 3x batteries
- Quick start guide
- Test report and operating manual.
