MINI94 Current Clamp
MIN94 50mA - 200A Current Clamp
MINI94
- Description

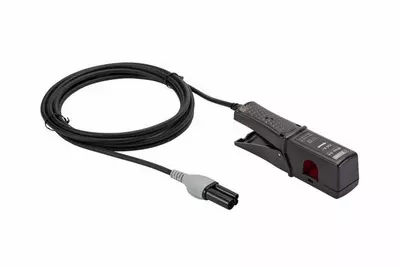

MINI94 50mA - 200A Current Clamp
The MINI 94 clamp is a current clamp for measuring AC current without any action required on the installation (no need to break into the current circuit to be measured).
The MINI 94 is a current clamp for measuring at industrial frequencies up to 200 A with an accuracy class of 0.2. Its excellent accuracy (gain and phase) make it ideal for current measurements with power and energy analysers. In particular, it can be used to check energy meters. Its specific feature: the lead for the output signal is equipped with a moulded 4-pin connector compatible with the latest-generation Qualistar Class A models from Chauvin Arnoux. The clamp is then powered by the instrument. The specific connector allows automatic recognition of the clamp by the instrument.
Features:
- Measurement range: 50mA - 200A AC
- Frequency: 48Hz to 65Hz
- Clamping Dia: 16mm
- Diamensions: 130.4mm x 46mm x 34mm
- Weight: 250g
- Cable length: 3m
- Rating: IEC 61010 600V CAT III/ 300V CAT IV
For use with Chauvin Arnoux Power Quality Meters and Data Loggers
