L461 Voltage Logger
L461 AC/DC Voltage Logger up to 1500V DC
L461
- Description

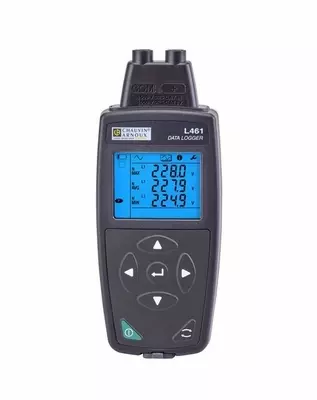

L461 AC/DC Voltage Logger, up to 1500V DC
The L461 Voltage Logger can be used to gather data and monitor 2 channel feeds to analyse voltage measurements up to 1500V DC. Ideal for use on Photovoltaic installations.
These voltage loggers can operate over a very long period of time if required. They are simple to set up and can communicate via a USB port or networked via WiFi mode.
Data logger transfer software is used to configue the device and process all measurements.
Features:
- 1 measurement channel
- Measurements from 10V-1200V AC and 10V-1700V DC
- Backlit display
- 8GB Memory
- 1 measurement per second
- Aggregation form 1 to 60 mins
- Powered by USB or 3x AA batteries
- Battery life of 3 days without WiFi
- Dimensions: 178mm x 34mm x 72mm
- Weight: 350g
- Sensor lead 1.2m
- Operating Temp: -20°C to 50°C
- Protection: IP54
- Electrical Safety: IEC 61010 600V CAT IV/ 1000V CAT III/ 1500V DC CAT III
In the box:
- L461 Voltage Logger
- USB micro USB cable
- USB Mains Adapter
- Data transfer and management software
- 3x batteries
- Quick start guide
- 2x 3m 1500V DC Voltage leads
- 2x 1500V DC Crocodile Clips
- Test report and operating manual.
