Pomona 4900 Panel Mount High Temp Banana Jack

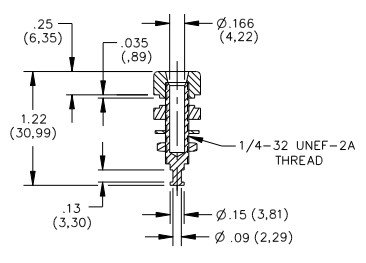

Pomona Electronics 4900 mounts into panels ranging in thickness from 0.063” (1.6mm) to 0.375” (9.5mm). Model 4900 features Polypenylene Sulfide for high temperature applications.
Specification
- Operating Voltage: Hand-held Testing: 30VAC/60VDC Max.
- Hand Free Testing in controlled Voltage Environment: 2500 WVDC.
- Operating Temperature: +115°C (+239°F), Model 4900 +220°C (+428°F)
- Current Rating: 15 A
Alternative Models
View the Datasheet for the complete Technical Specification.
