Pomona 1581 Panel Mount Socket
1581
- Description

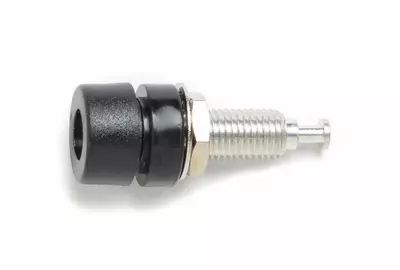

Pomona 1581 Panel Mount Banana Jack
The Pomona 1581 Panel Mount Banana Jack features bright tin plating and capability to mount into panels ranging in thickness from .063 (1.6mm) to .375 (9.5mm).
Specification
- Operating Temperature: +115°C (+239°F)
- Operating Voltage: For CE compliance and for personal safety, do not hold in hand when voltages exceed 30 Vrms/60 Vdc.
- Maximum Voltage (Hands Free): 2500 WVDC
- Current Rating: 15 Amps
Alternative Models
- Pomona 4900 > High Temperature Applications
- Pomona 2854 > Optimum Electrical Connection

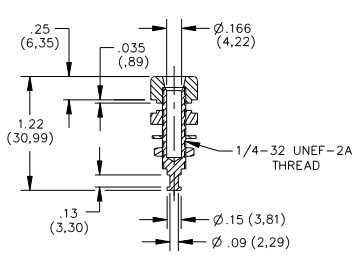

Please view the datasheet for the full Pomona 1581 Specification.- Download Datasheet
