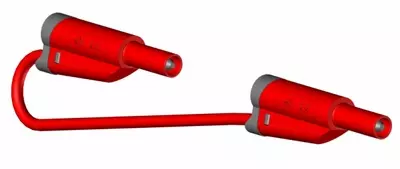

PJP 2717-15II-150 36A 1500V CAT II PVC Lead with Stacking Shrouded 4 mm Plugs

PJP 2717-15II-150 36A 1500V CAT II PVC Patch Lead with Stacking Shrouded 4 mm Banana Plugs

MoQ = 10pcs

IEC 61010-031 1500V CAT II/ 1000V CAT II for safe operation of Testers and instruments.

Stackable shrouded Banana Plugs connected with 2.5mm² wire with double jacket PVC covering for maximum flexibility.  Double PVC Jackets with the first layer being white and acting as a wear indicator and the second layer being the colour of choice.  The white inner jacket allows to the user to check the state of the wire insulator.  If the inner jacket is visible then the wire is worn and it should be replaced.

Individual test leads are completely colour-coded for ease of identification

Maximum current load 36A

Operating temperature –20°C to +80°C

Plug Material : PP
Plug Metallic Material: Insulation
Nature metallic material : Brass and CuBe / Ni coated

Choose colour and length.

View the Datasheet for more information.
