L412 Current Logger with 2 Channels
L412
- Description

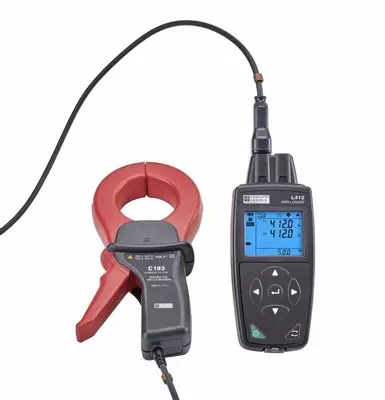

L412 Current Logger, 2 Channel 0.5-3000A AC

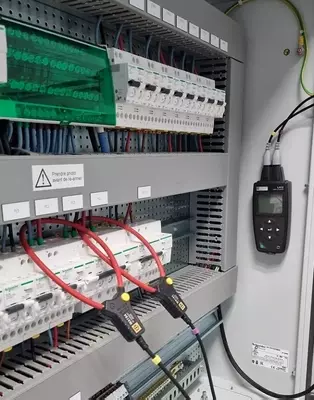

The L412 Current Logger can be used to gather data and monitor 2 channel feeds to analyse energy consumption in buildings or on an industrial load to enable energy efficiency. They also aid in the identification of potential problems before they become critical, such as overloading, over heating etc. Logging current can also provide evidence of an outage or power variation that has caused a malfunction.
These current loggers can operate over a very long period of time if required. They are simple to set up and can communicate via a USB port or networked via WiFi mode.
Data logger transfer software is used to configue the device and process all measurements.
Can be used with the following current clamps:
MN93 500mA - 200A Current Clamp
MN93A 0.005A - 100A Current Clamp
MINI94 50mA-200A Current Clamp
AmpFlex/ MiniFlex MA194 Current Clamp
Features:
- 2 measurement channels to monitor 2 electrical feeds at the same time
- Measurements from 0.5A to 3000A AC dependant on sensor selected
- Backlit display
- 8GB Memory
- 1 measurement per second
- Aggregation form 1 to 60 mins
- Powered by USB or 3x AA batteries
- Battery life of 3 days without WiFi
- Dimensions: 172mm x 34mm x 72mm
- Weight: 350g
- Current sensor: 100mm dia, 350mm long, lead 1.2m
- Operating Temp: -20°C to 50°C
- Protection: IP54
- Electrical Safety: IEC 61010 600V CAT IV/ 1000V CAT III
In the box:
- L412 Current Logger
- USB micro USB cable
- USB Mains Adapter
- Data transfer and management software
- 3x batteries
- Quick start guide
- Test report and operating manual.
